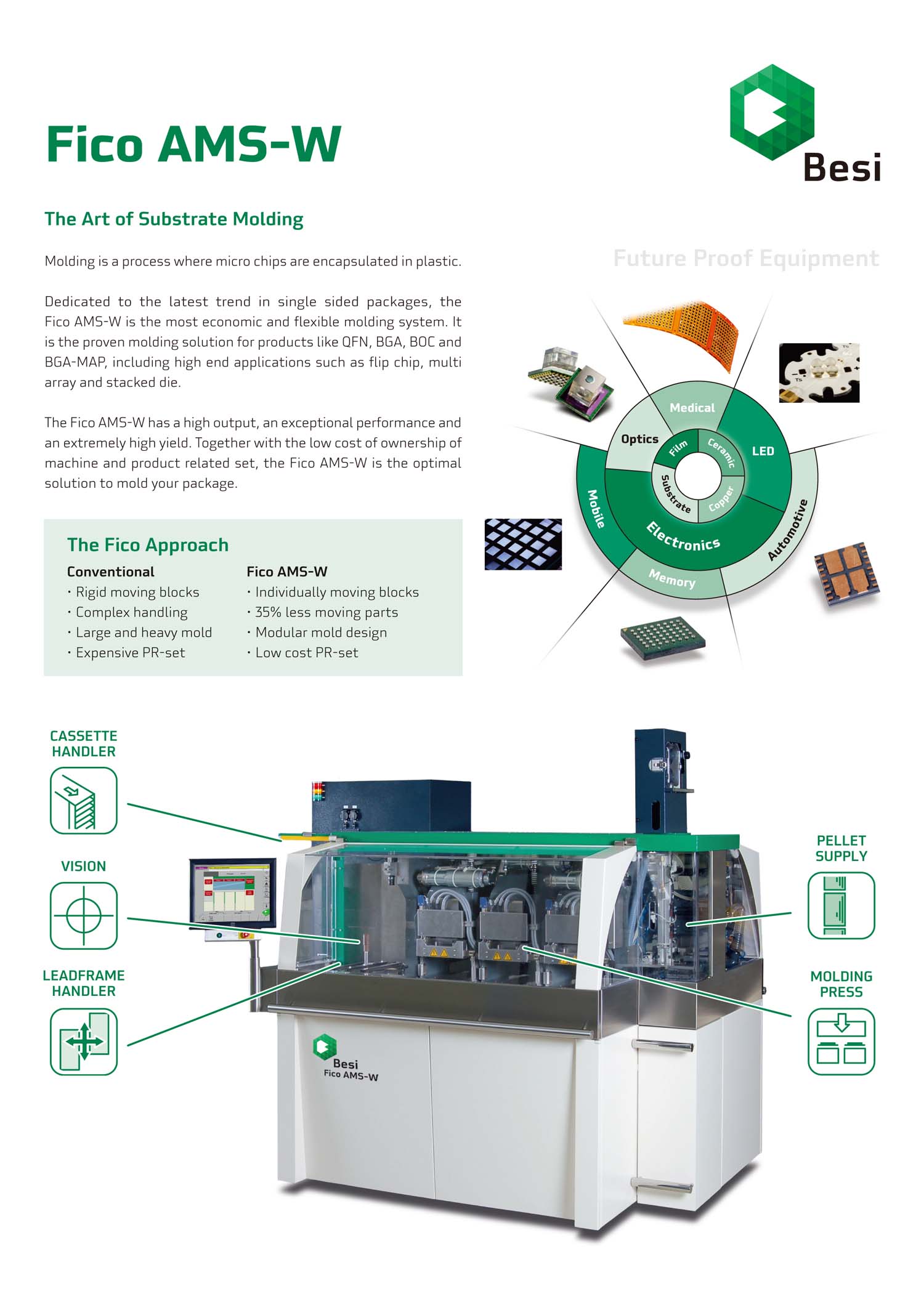

The Fico AMS-W is the most economic and flexible MAP molding system, dedicated to the latest trend in single sided packaging. It is the molding solution for products like QFN, BGA, BOC and BGA-MAP, including high end applications such as flip chip, multi-chip array and stacked die.

Key Features:
• Clean room class 1000
• Topedge gating
• 45 tons press station
• Transfer pressure control
• Cavity vacuum control
• Adaptive clamping
• Semi S2/S8 compliant
• Unwanted object detection in the press to prevent damage
• Remaining cull detection when molded products are unloaded
• Leadframe orientation check with automatic correction
• Remote pellet feed with pellet length check
• Product & lot tracking
• Large cull bin, can be emptied while the machine continues production
• User friendly touch screen with all machine manuals
• Clean room class 1000 compatible
• CE compliant

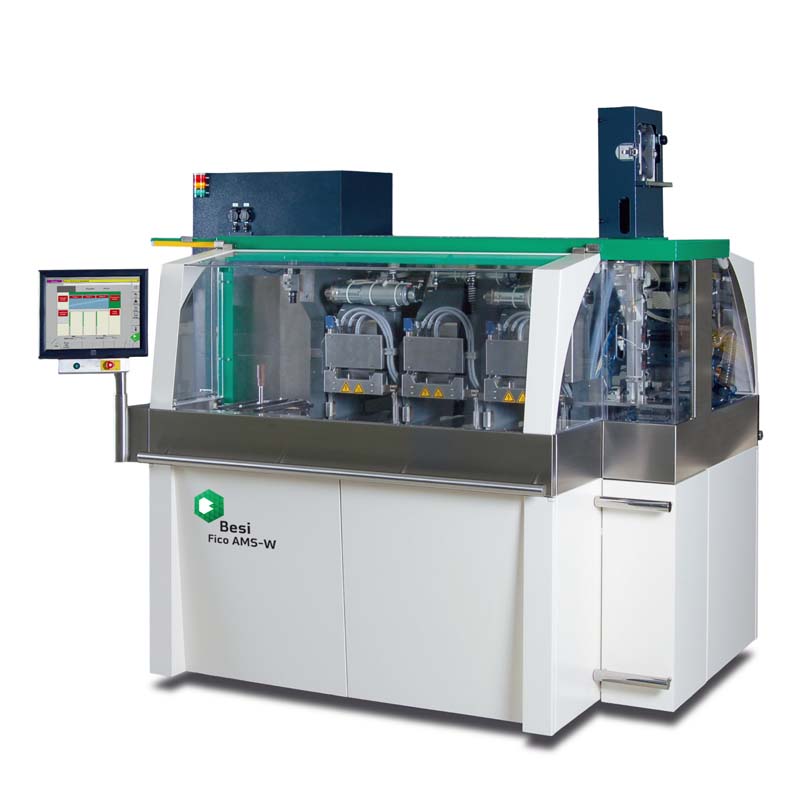

Fico AMS-W

Fico-AMS-W

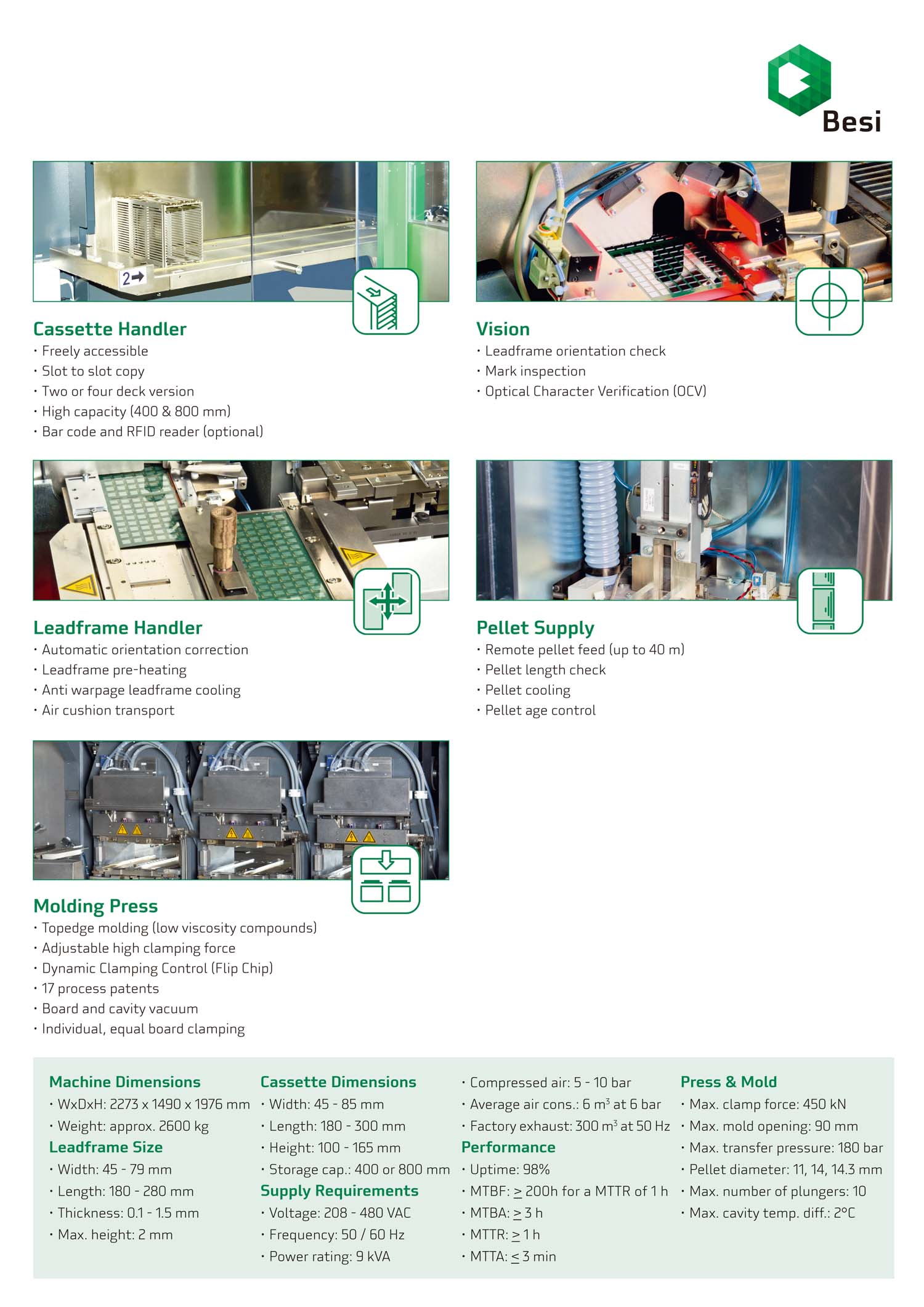

Product Details:

Specifications:
Equipment Performance
Up time ≥ 98%
Max. throughput ca. 250 Lf/h
MTBF ≥ 200 h for every MTTR of 1 h
MTBA ≥ 3 h
MTTR ≤ 1 h
MTTA ≤ 3 min
Mold open time 16 sec

Leadframe Dimensions
Width : 45 - 78 mm
Length : 180 - 280 mm
Thickness : 0.1 - 1.5 mm
Height Max. : 2 mm

Cassette Dimensions
Width : 48 - 85 mm
Length : 180 - 300 mm
Height : 100 - 165 mm
Storage capacity : 400 mm

Press and Mold Properties
Max. clamp force : 450 kN
Max. mold opening : 90 mm
Max. transfer pressure : 180 bar
Pellet diameter : 11, 14 or 14.3 mm
Max. pellet length : 45 mm
Max. number of plungers : 10
Max. cavity temperature difference : ± 2 ºC
