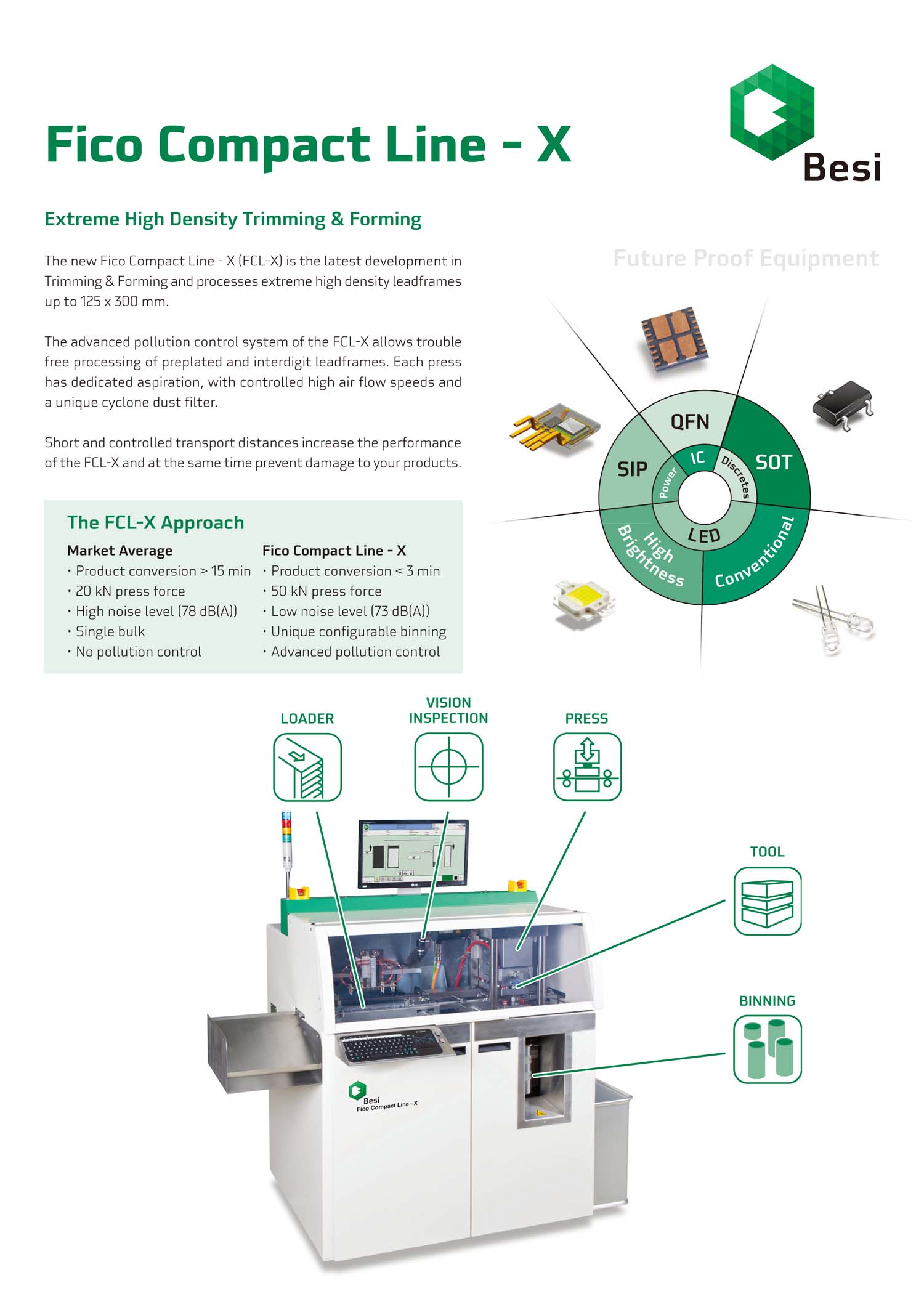

The new Fico Compact Line - X (FCL-X) is the latest development in Trimming & Forming and can process extreme high density leadframes up to 125 x 300 mm. The FCL-X is the answer to the increasing accuracy and Cpk demands.
Increased press force
The FCL-X press has an increased press force to process extreme high density leadframes. Its advanced pollution control system allows trouble free processing of preplated and interdigit leadframes. Each press has dedicated aspiration, with controlled high air flow speeds and a unique cyclone dust filter.
Different loaders and offloaders
A range of loader and offloader modules are available, ranging from magazines and cassettes to tray, bulk and tube. Short and controlled transport distances increase the performance of the FCL-X and at the same time prevent damage to your products.

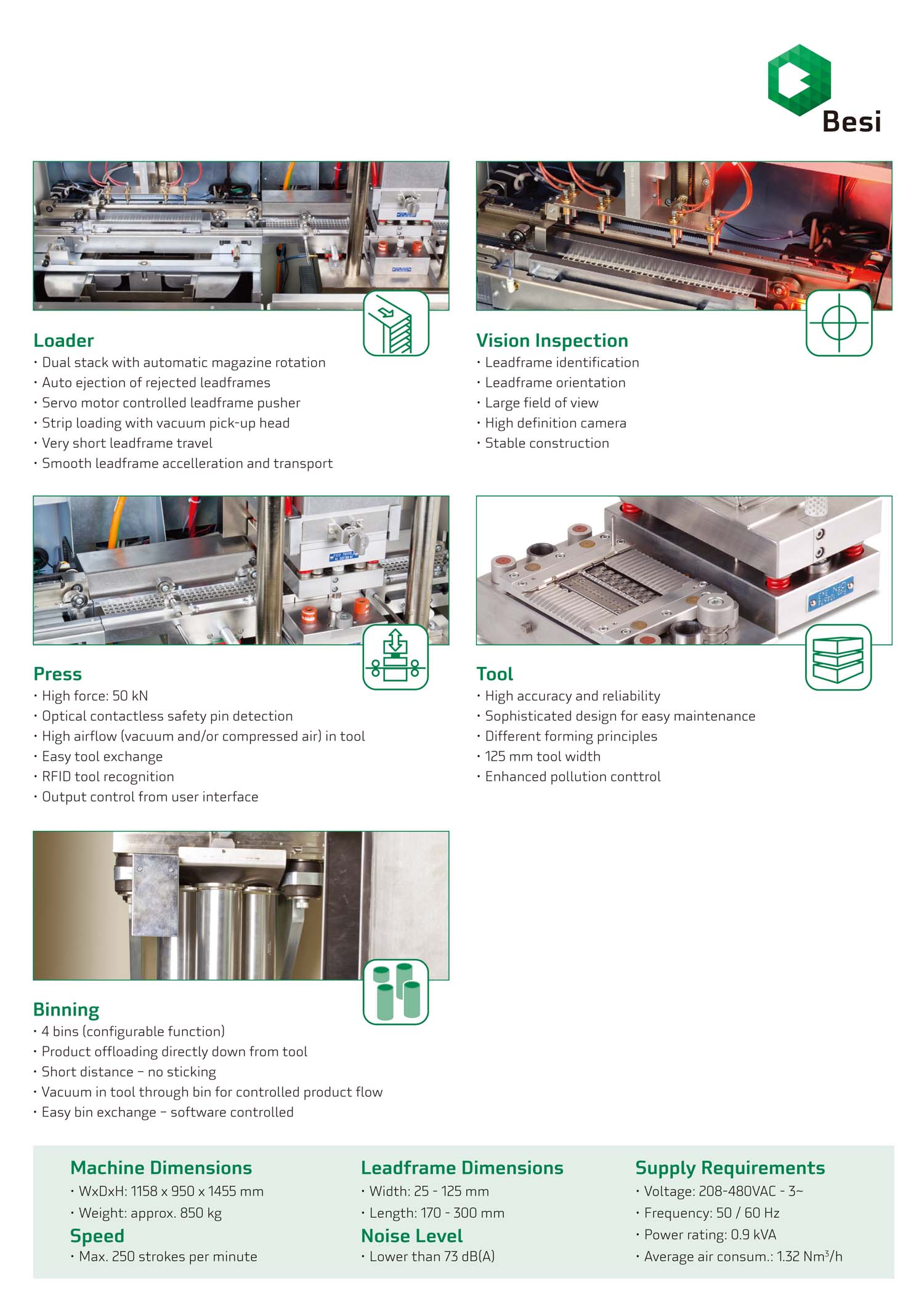

Key Features:
• Wide range of available modules
• Dual Stack Magazine Handler
• Vision Inspection
• Press
• Tool
• Bulk Offloader (Binning)
• Control unit
• Slotted Magazine Loader

Fico Compact Line - X

Fico-compact-line-x

Product Details:

Specifications:
• Product Handling Specifications
Leadframe length 170 - 300 mm
Leadframe width 18 - 125 mm
Leadframe thickness 0.1 - 0.4 mm
Package thickness 0 - 5 mm

• Speed and Noise level
Speed Max. 250 strokes per minute
Noise level Lower than 73 db(A)

• Available modules
DSMH Dual Stack Magazine Handler
CU Control Unit
SML Slotted Magazine Loader
PM Press Module
BO Bulk Offloader
LM Laser Marker
S2S Separator to Sorter
DS Device Sorter

• Dual Stack Magazine Handler
Magazine height 150 - 600 mm
Magazine length 150 - 306 mm
Magazine width 25 - 131 mm
Magazine weight max. 15 kg (including leadframes)

• Slotted Magazine Loader
Magazine height 100 - 240 mm
Magazine length 170 - 300 mm
Magazine width 25 - 160 mm

• Press Module
Press force 50 kN (6.6 Joule)
Tool width 125 mm
