Key Features:
• Fully configured out of the box
• Quick release intelligent load cartridge system for rapid applications changeover
• Ergonomic pull hook system for fast load hook changes – no hand tools needed
• Auto hook function for automatic repeatable hook to wire positioning
• Ball shear Z positioning accuracy (step back) +/- 1 micron (qualifed with laser measurement system)
• Automatic alarm notifcation for load test results that have drifted outside their selected CpK limits
• Automatic load cartridge calibration and linearity checks using weights directly traceable to national standards
• Includes remote tower PC, Win7, 32BiT with keyboard, mouse and 17 inch monitor
• Includes Nordson DAGE microscope kit with 10x eye pieces and a 0.67 objective lens

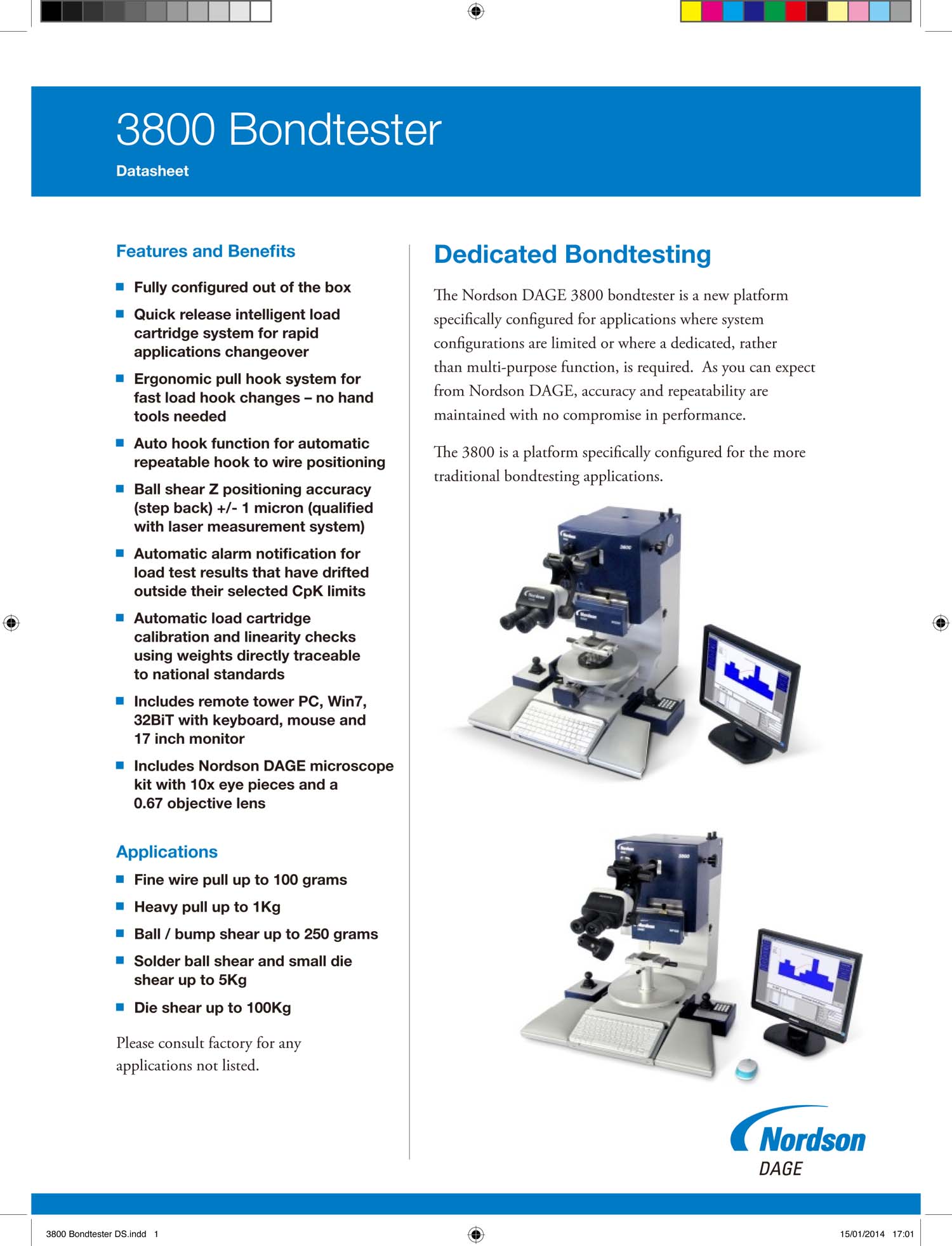

3800 Bondtester


Nordson DAGE 3800 bondtester is a new platform specifically configured for applications where system configurations are limited or where a dedicated, rather than multi-purpose function, is required. As you can expect from Nordson DAGE, accuracy and repeatability are maintained with no compromise in performance.
